    • RSD200 Dry screw vacuum pump

    Introduction：
    Motor Power: 3.7 Kw

    Pumping speed(50Hz): 200 m³/h

    Ultimate pressure: ≤0.5 Pa(without purging)

    GET A QUOTE

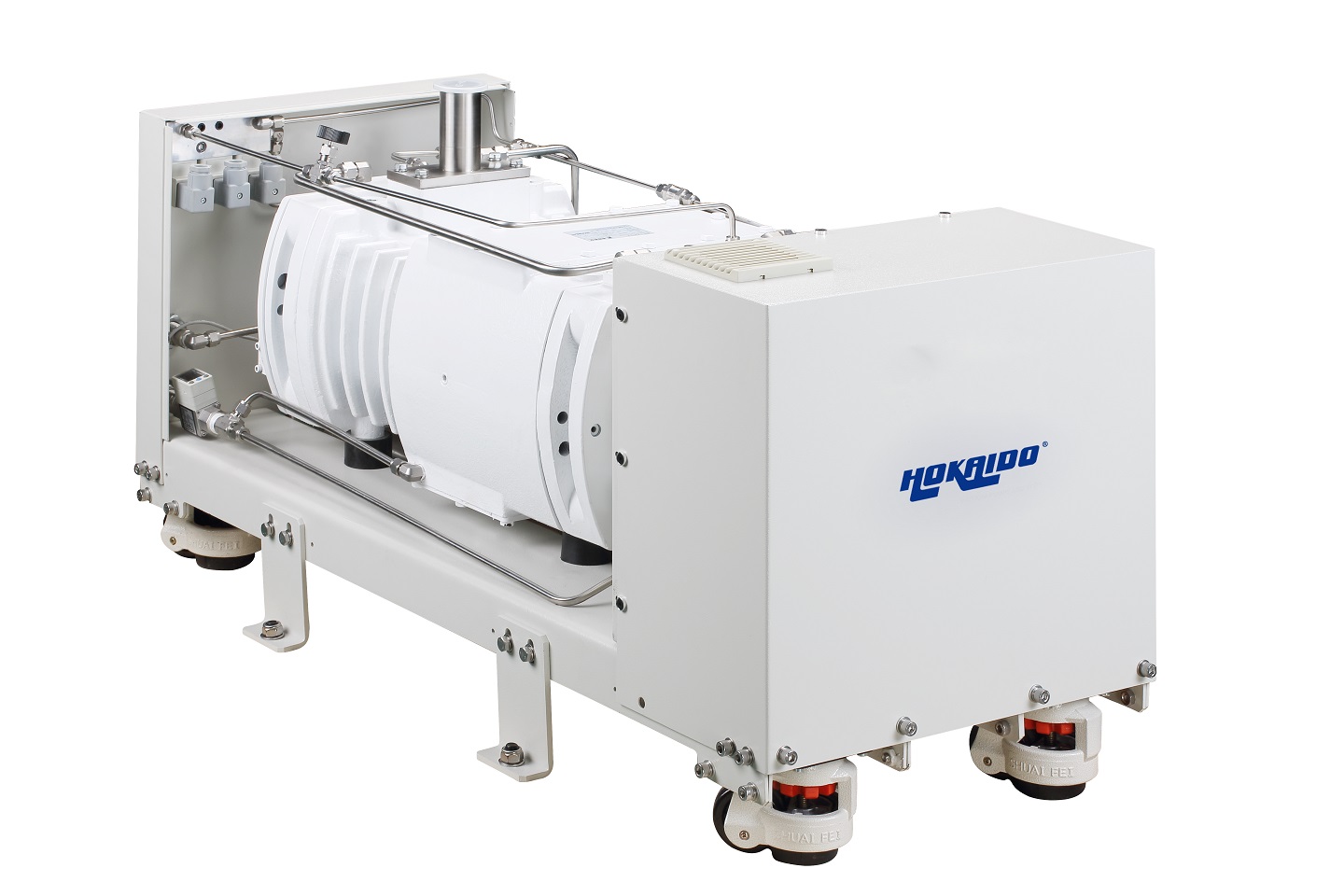

    RSD200 Dry screw vacuum pump

    Technique data Unit RSD200
    Pumping speed m3/h 200
    Ultimate pressure (without purging) Pa ≤0.5
    Motor rated power kw 3.7
    Voltage(three-phase) V 380/400
    Air inlet connector   KF50
    Air outlet connector   KF40
    Cooling water Pressure MPa 0.2-0.6
    Flow rate L/min ≥4
    Temperature ℃ 5-30
    N2 purging Pressure MPa 0.2-0.6
    Flow rate L/min 12-50
    Maximum allowable outlet pressure MPa 0.14
    Noise (with muffler and check valve) dB(A) ≤70
    Ambient temperature ℃ 5-40
    Weight Kg ~273

    Dimension drawing:


    Performance curve:
