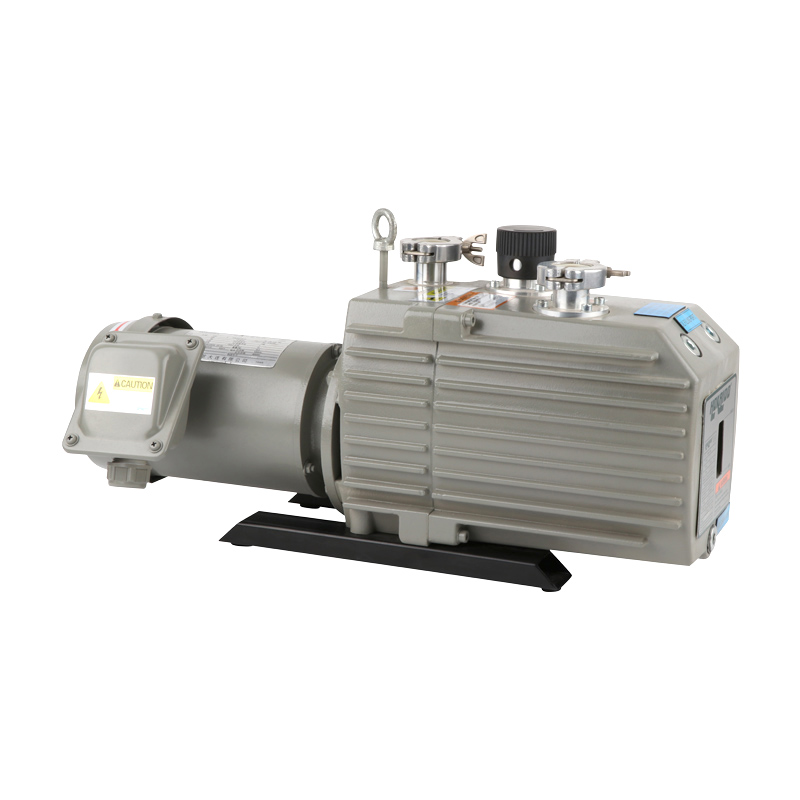

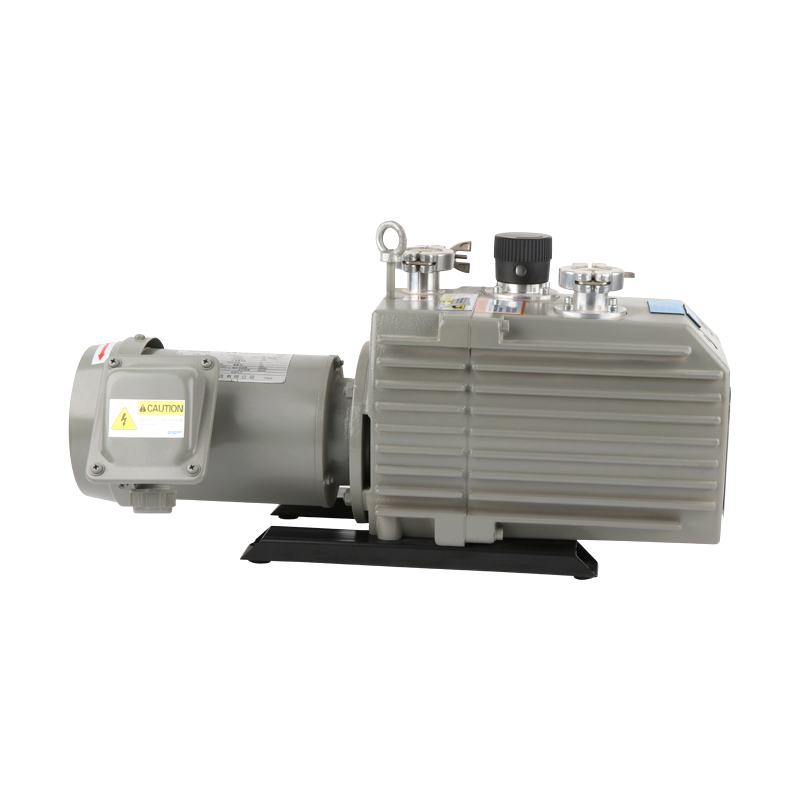

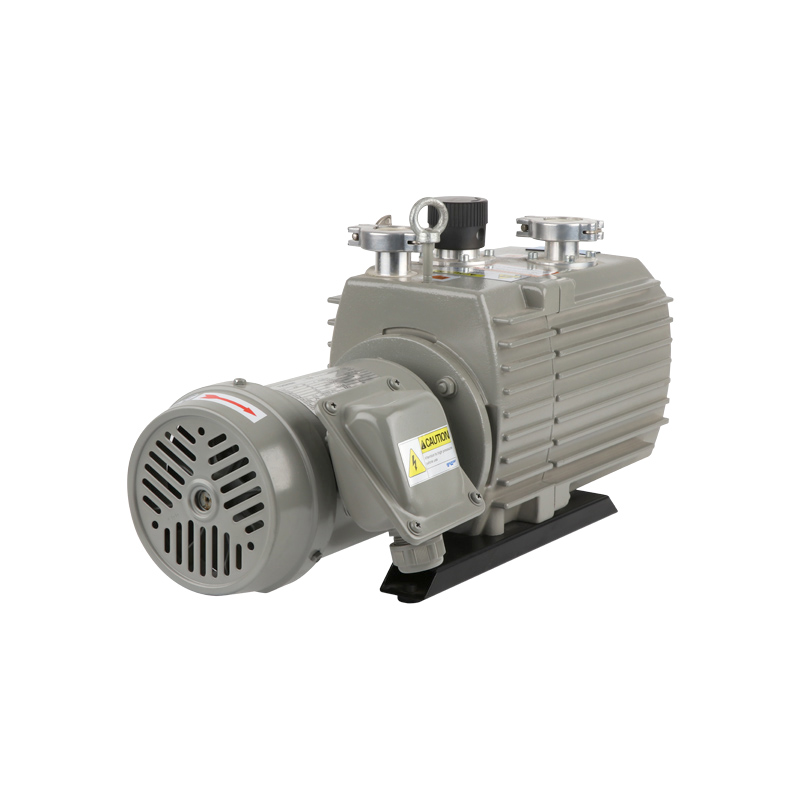

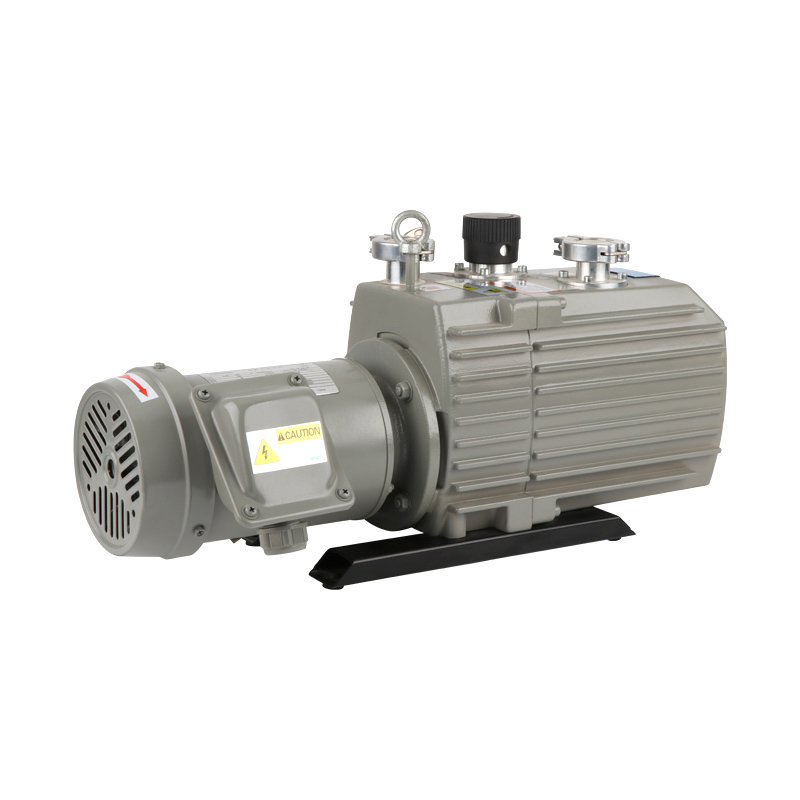

2RH008D Double-stage Rotary Vane Vacuum Pump
| Technical data | Frequency | 2RH008D |
|---|---|---|
| Pumping Speed | 50Hz | 8m3/h |
| 60Hz | 9.6m3/h | |
| Ultimate Pressure w/o gas ballet | mbar | 4.0x10-4 |
| Ultimate total Pressure w/o gas ballet | mbar | 3.0x10-3 |
| Ultimate Pressure w/gas ballet | mbar | 6.0x10-3 |
| Water VaporΔP | mbar | 30 |
| Inlet/Outlet Flange | " | KF25 |
| Voltage | 50Hz | 220/380v |
| 60Hz | 220/380v | |
| Nominal motor rating | Kw | 0.5 |
| Current | 50Hz | 9.57/5.40A |
| 60Hz | 11.5/6.48A | |
| Motor speed | 50Hz | 1440 |
| 60Hz | 1720 | |
| Noise | dB(A) | 54/56 |
| Oil (min/max) | L | 0.7/1.0 |
| Weight(w/o oil) | Kg | 27 |
Dimension drawing:

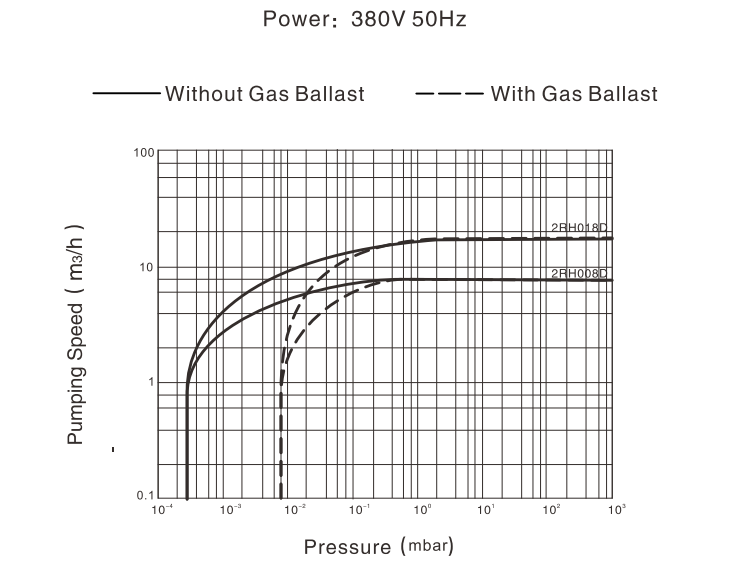

Performance curve:
