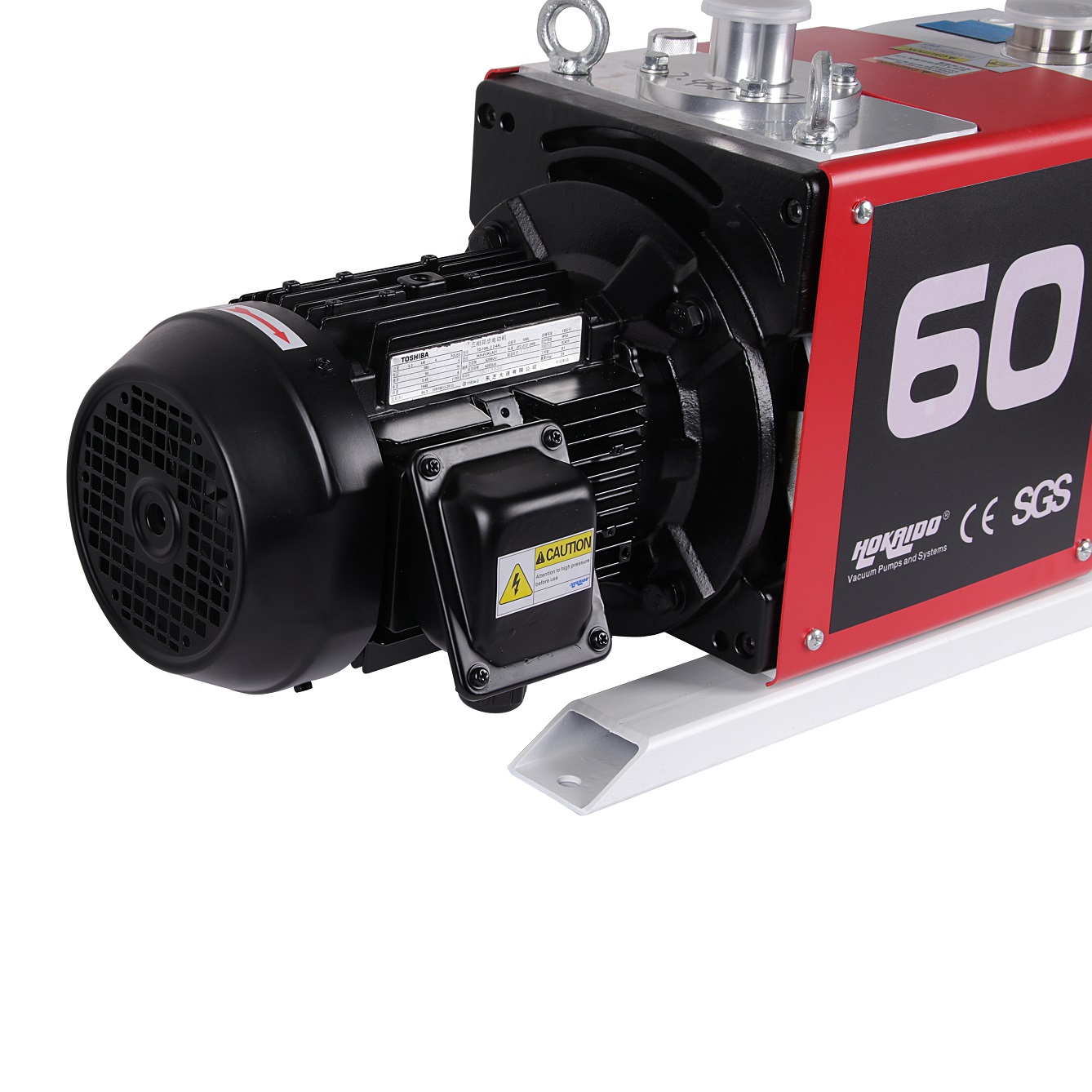

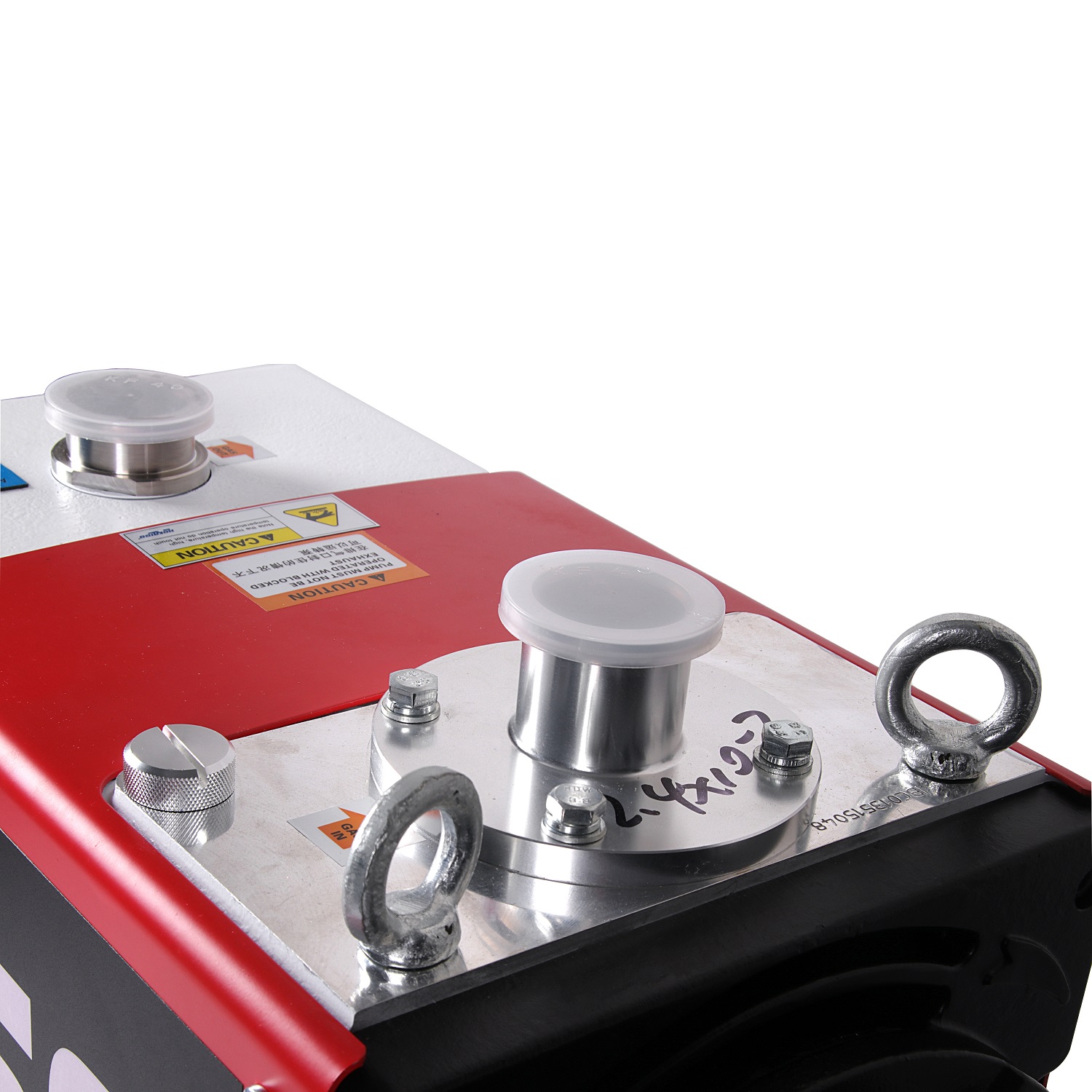

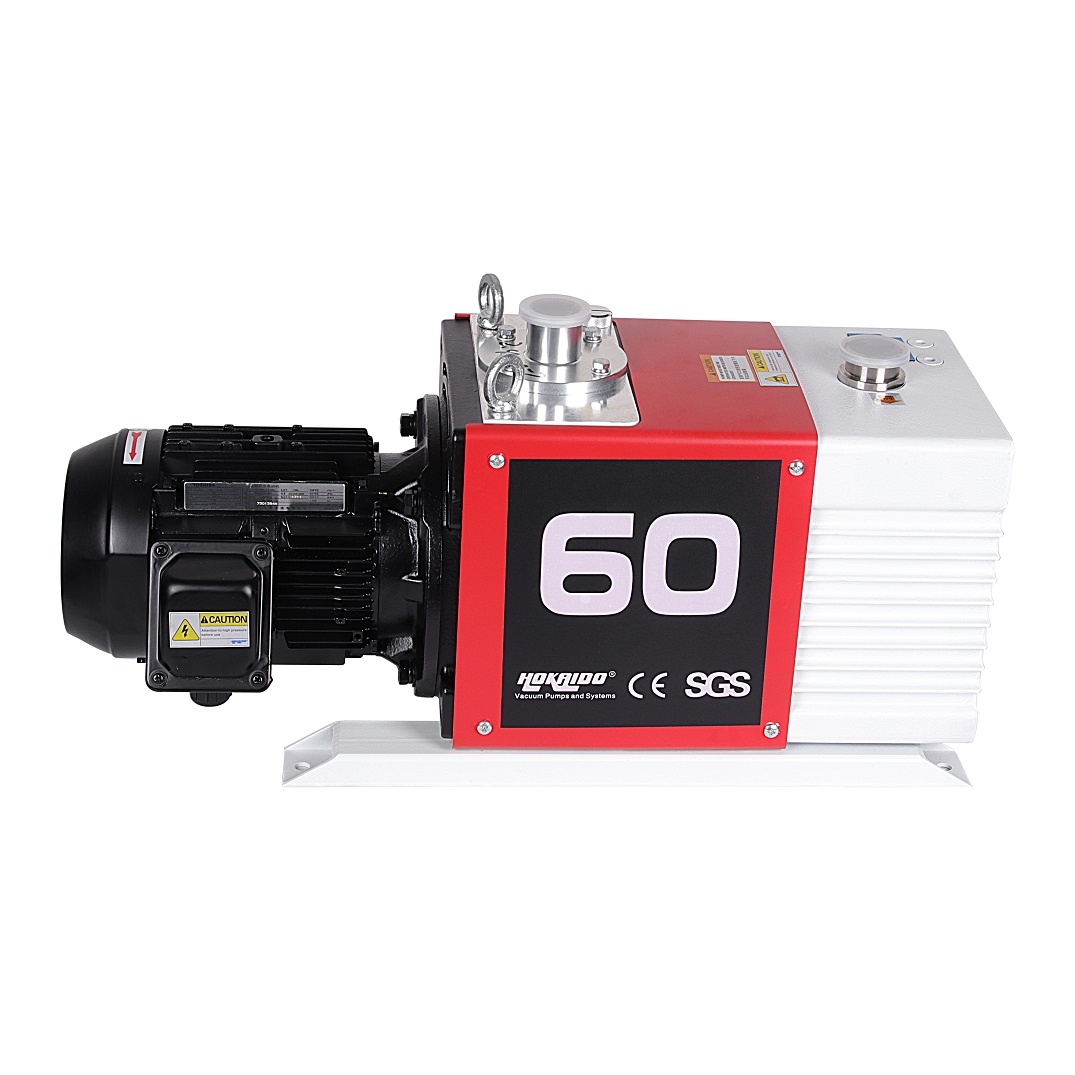

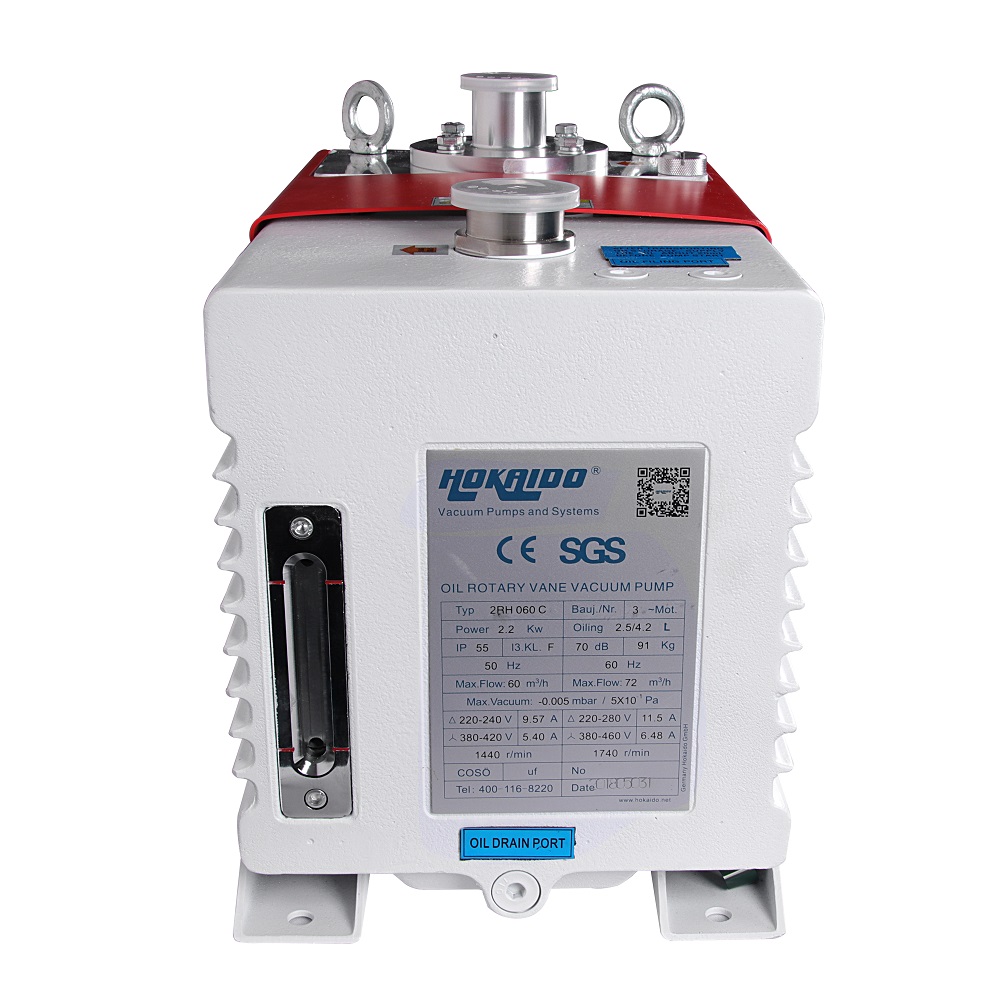

2RH060C Double-stage Rotary Vane Vacuum Pump
| Technical data | Frequency | 2RH060C |
|---|---|---|
| Pumping Speed | 50Hz | 60m3/h |
| 60Hz | 72m3/h | |
| Ultimate Pressure w/o gas ballet | mbar | 7.0x10-4 |
| Ultimate total Pressure w/o gas ballet | mbar | 5.0x10-3 |
| Ultimate Pressure w/gas ballet | mbar | 2.0x10-4 |
| Water VaporΔP | mbar | 30 |
| Inlet/Outlet Flange | " | KF40 |
| Voltage | 50Hz | 220-240/380-420v |
| 60Hz | 220-280/380-460v | |
| Nominal motor rating | Kw | 2.2 |
| Current | 50Hz | 9.57/5.40A |
| 60Hz | 11.5/6.48A | |
| Motor speed | 50Hz | 1440 |
| 60Hz | 1700/1720 | |
| Noise | dB(A) | 70 |
| Oil (min/max) | L | 2.5/4.2 |
| Weight(w/o oil) | Kg | 91 |
Dimension drawing:
Performance curve:
