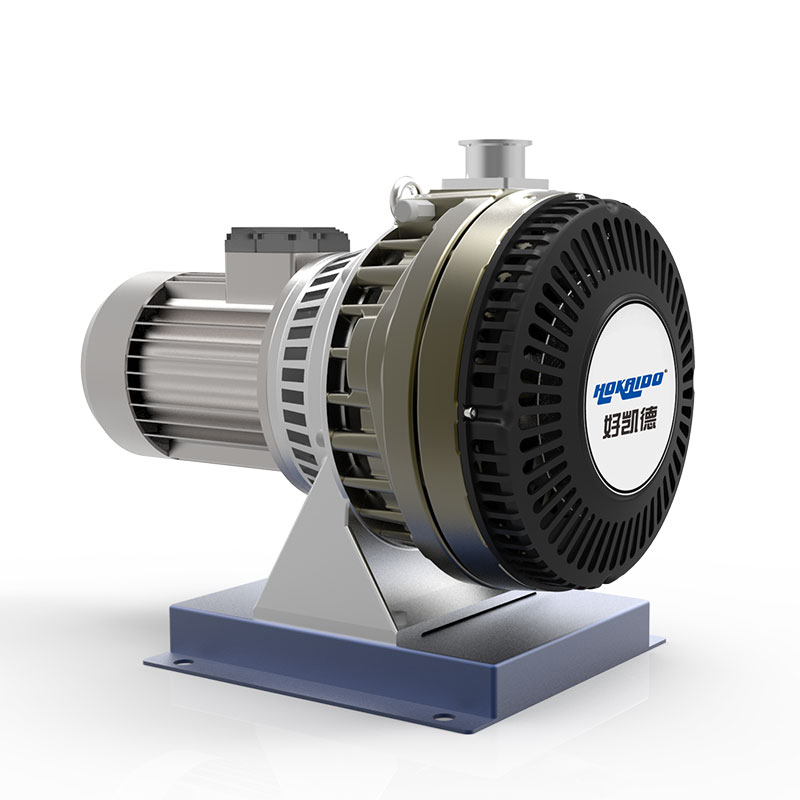

RGP8 Scroll vacuum pump
Product Description
Technical Data
| Technique data | Unit | RGP8 |
|---|---|---|
| Rated speed | rpm | 1750 |
| Theoretical pumping speed | m3/h | 30 |
| Ultimate vacuum degree | mbar | 0.008 |
| Motor power | W | 750 |
| Input voltage | V | Single phase 100-240/ three-phase 200-460 |
| Dimensions（L*W*H） | mm | 491*305*401 |
| Noise | dB(A) | 63 |
| Inlet port | KF40 | |
| Outlet port | KF25 | |
| Water vapor treatment capacity | gh-1 | 60 |
| Leak rate | Mbar.l/s | ＜1*10-4 |
| Weight | kg | 44 |
| Cooling type | air cooling | |
| Operating ambient temperature | ℃ | 5-40 |
Characteristic
Dimensions
